UBERTI 1858 New Army (Remington) Perkusní revolver

UBERTI 1858 New Army (Remington) Perkusní revolver

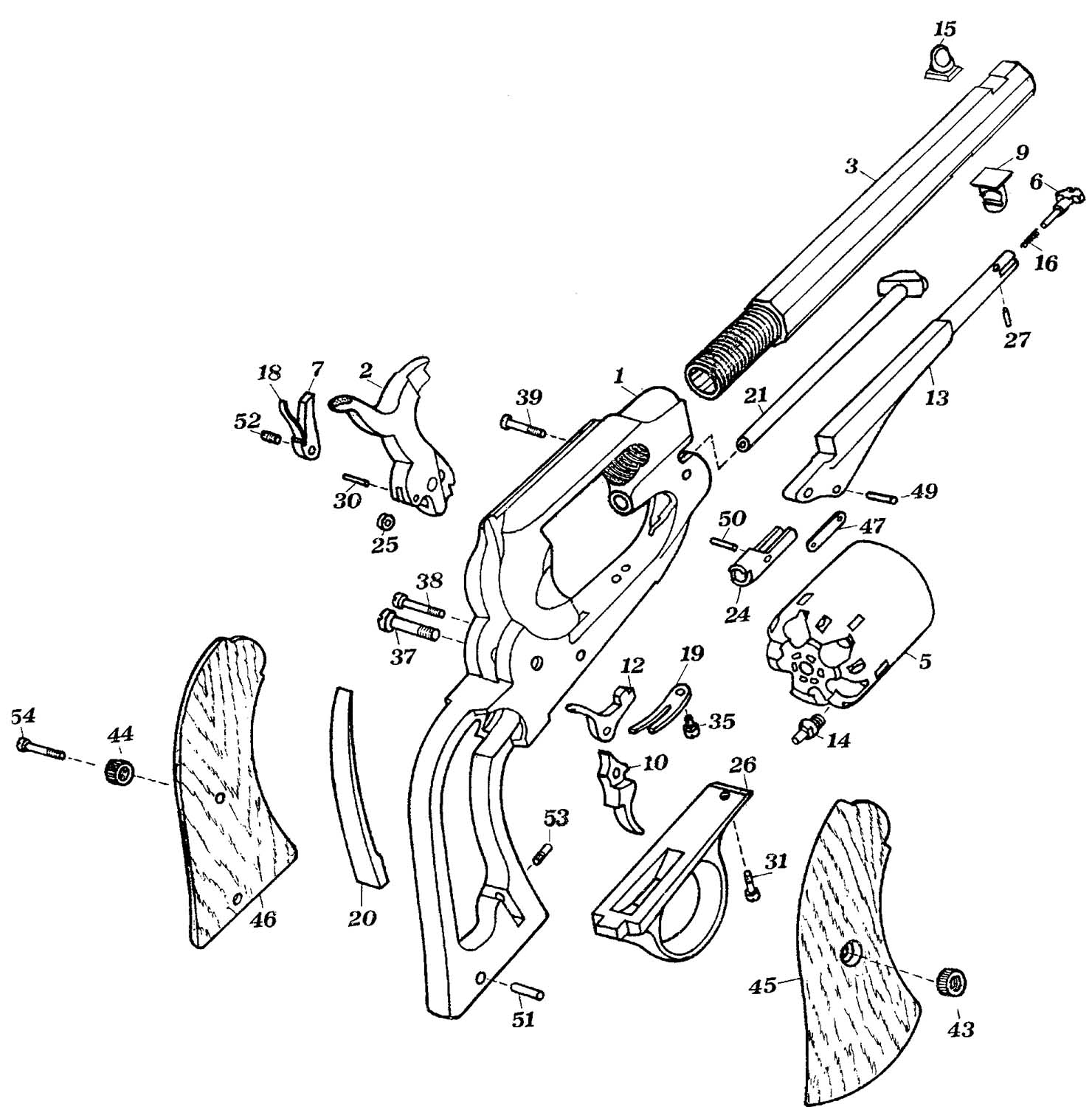

Rozkres perkusního revolveru výrobce A.UBERTI model 1858 New Army (Remington) v ráži 44 a 36.

c



N. Code No. Q.ty Description
1 0107001 1 FRAME
2 A0107002 1 RGT58 IMPROVED HAMMER ASSEMBLY
3 0100003 1 BARREL 8″.44
5 A0100005 1 RGT58 .44 CYLINDER ASSEMBLY
7 A0100007 1 RGT58 HAND ASSEMBLY
9 0100009 1 BARREL STUD
10 0100010 1 TRIGGER
12 0100012 1 BOLT
13 A0100013 1 RGT58 8″ .44 LOADING LEVER ASSEMBLY
15 0100015 1 SIGHT
19 0100019 1 TRIGGER BOLT SPRING
20 0100020 1 MAIN SPRING
21 0100021 1 BASE PIN
26 1000026 1 TRIGGERGUARD
31 0100031 1 TG. SCREW
35 0100035 1 TRIGGER BOLT SPRING SCREW
37 0107037 1 HAMMER SCREW
38 0100038 1 TRIGGER SCREW
39 0100039 1 LOADING LEVER SCREW
43 0100043 1 RIGHT GRIP NUT
44 0100044 1 LEFT GRIP NUT
45 1000045 1 RIGHT GRIP
46 1000046 1 LEFT GRIP
51 0100051 1 GRIP PIN
52 0100052 1 HAND SCREW
53 1000053 1 MAIN SPRING SCREW
54 1000054 1 GRIP SCREW
